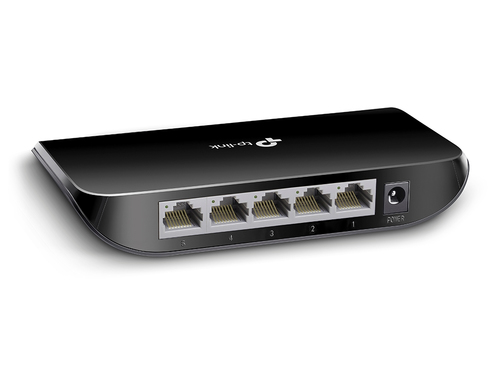

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

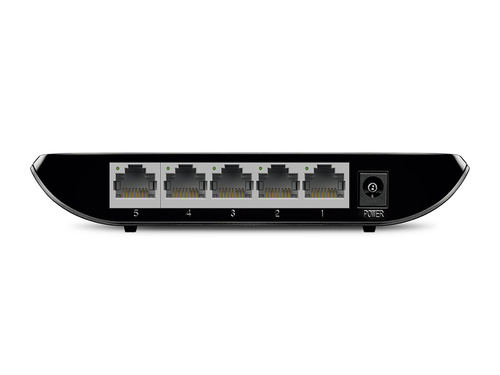

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 2
TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 3

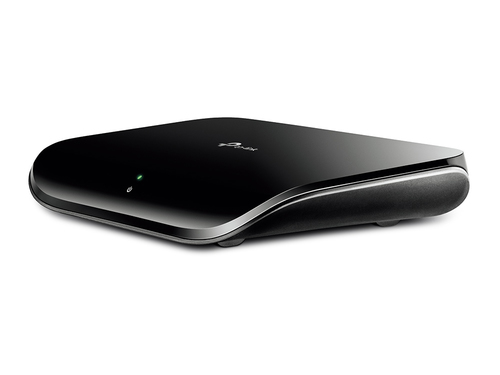

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 4

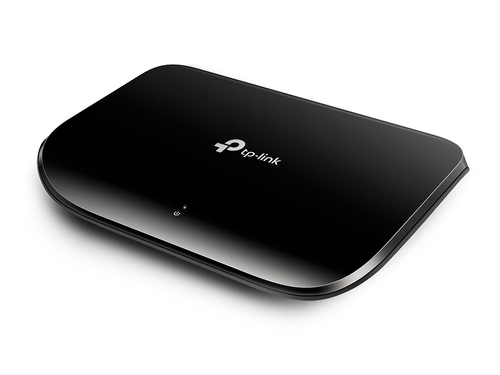

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 5

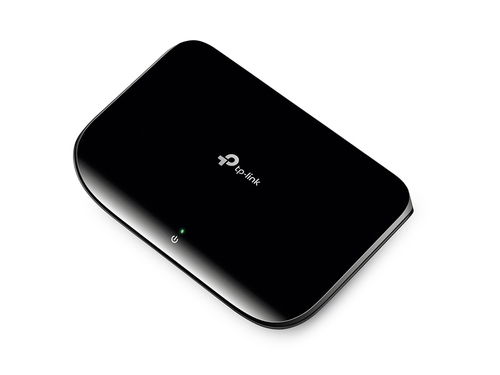

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 6
TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 7
TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black - Image 8

TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

TP-Link TL-SG1005D, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

SKU: TL-SG1005D Category:

Brochure TP-Link TL-SG1005D (0)
Bullet Points TP-Link TL-SG1005D network switch Unmanaged Gigabit Ethernet (10/100/1000) Black:
Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5
MAC address table: 8000 entries Switching capacity: 10 Gbit/s
DC

TP-Link TL-SG1005D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Switch type

Unmanaged
Basic switching RJ-45 Ethernet ports quantity

5
Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Supported data transfer rates

10/100/1000 Mbit/s
Rack mounting

No
Power source

DC
Power over Ethernet (PoE)

No
Operating temperature (T-T)

0 – 40 °C
Width

165 mm
Quick start guide

Yes
Package width

145 mm
Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)
Full duplex

Yes
Switching capacity

10 Gbit/s
Product colour

Black
Input current

0.6 A
Storage temperature (T-T)

-40 – 70 °C
Depth

108 mm
Package depth

108 mm
Gigabit Ethernet (copper) ports quantity

5
Half duplex

Yes
MAC address table

8000 entries
LED indicators

Yes
Input voltage

9 V
Operating relative humidity (H-H)

10 – 90%
Height

28 mm
Package height

85 mm
Power connector

DC-in jack
Flow control support

Yes
Store-and-forward

Yes
Power consumption (max)

2.41 W
Storage relative humidity (H-H)

5 – 90%
Package weight

240 g
Auto MDI/MDI-X

Yes
Maximum data transfer rate

1 Gbit/s
Heat dissipation

8.22 BTU/h
Auto-negotiation

Yes
Jumbo frames support

Yes
MAC address auto-learning supported

Yes
Jumbo frames

15000
MAC address auto-aging supported

Yes
