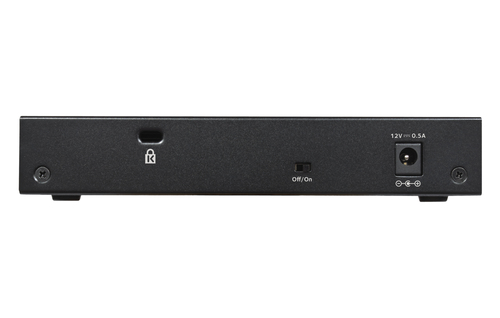

NETGEAR GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

https://objects.icecat.biz/objects/mmo_69446853_1556538873_459_20514.pdf
Product Brochure (809.84 KB) Installation Guide (97.26 KB)
Bullet Points NETGEAR GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black:
Unmanaged L2
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 16 Gbit/s

NETGEAR GS308-300PES. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power connector: DC-in jack. Wall mountable

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Switching capacity	16 Gbit/s
Rack mounting	No
Mean time between failures (MTBF)	3711898 h
Power consumption (max)	3.04 W
Power over Ethernet (PoE)	No
Warranty period	3 year(s)
Operating temperature (T-T)	0 – 40 °C
Width	158 mm
Shipping (inner) case height	43.4 cm
Certification	CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC
Harmonized System (HS) code	85176990
Switch layer	L2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
10G support	No
Forwarding rate	1.448 Mpps
Product colour	Black
Storage temperature (T-T)	-20 – 70 °C
Depth	101 mm
Shipping (inner) case width	48.6 cm
Quality of Service (QoS) support	Yes
Gigabit Ethernet (copper) ports quantity	8
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table	8000 entries
Housing material	Metal
Operating relative humidity (H-H)	0 – 90%
Height	29 mm
Shipping (inner) case length	32.9 cm
Power connector	DC-in jack
Flow control support	Yes
Latency (1 Gbps)	2.6 µs
LED indicators	Activity, Link, Power
Storage relative humidity (H-H)	0 – 95%
Weight	390 g
Shipping (inner) case net weight	14.6 kg
Auto MDI/MDI-X	Yes
Jumbo frames support	Yes
Wall mountable	Yes
Operating altitude	0 – 3000 m
Products per shipping (inner) case	20 pc(s)
Auto-sensing	Yes
Jumbo frames	9216
Heat dissipation	10.4 BTU/h
Cable length detection	Yes
Packet buffer memory	128 MB
